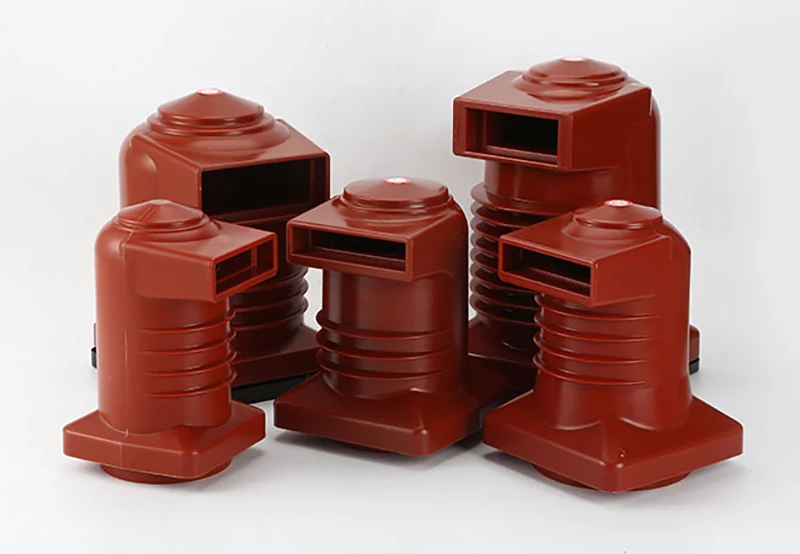

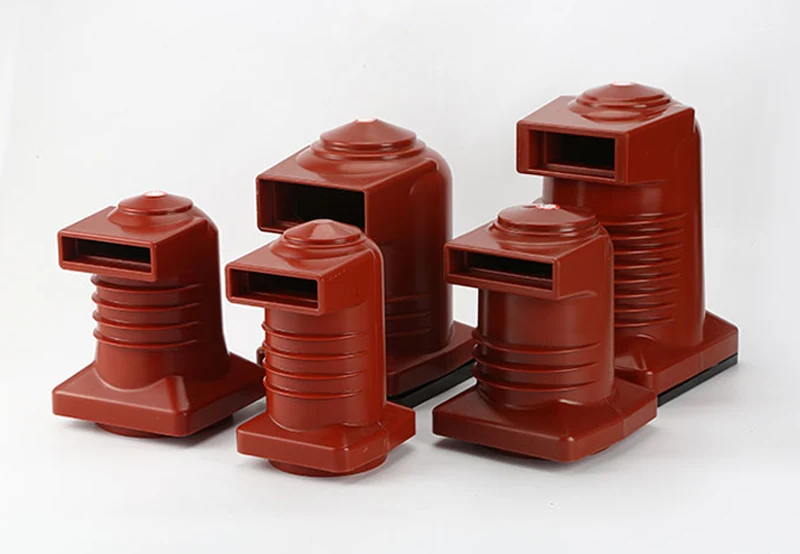

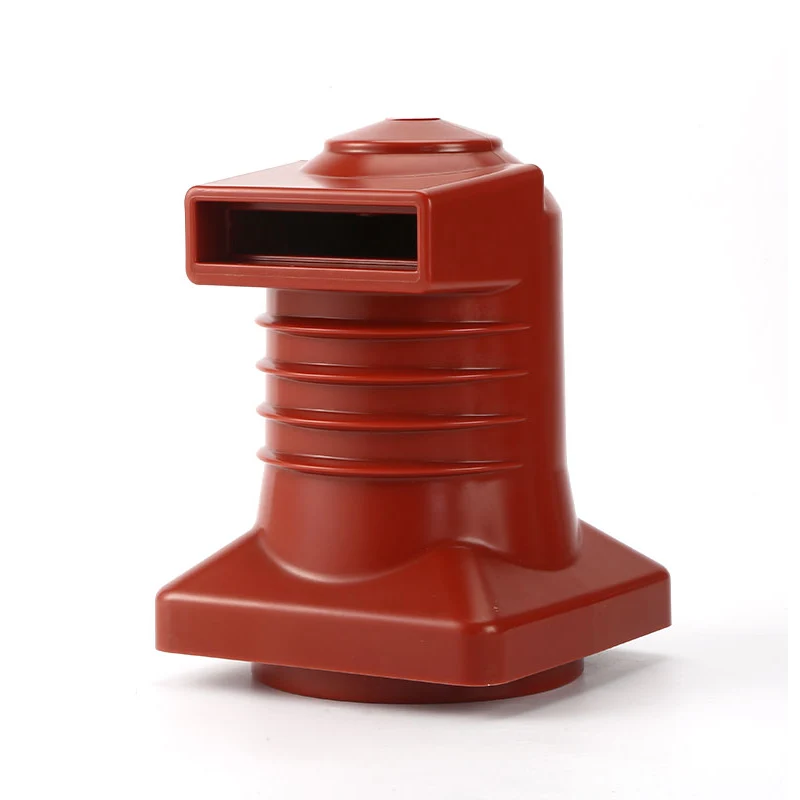

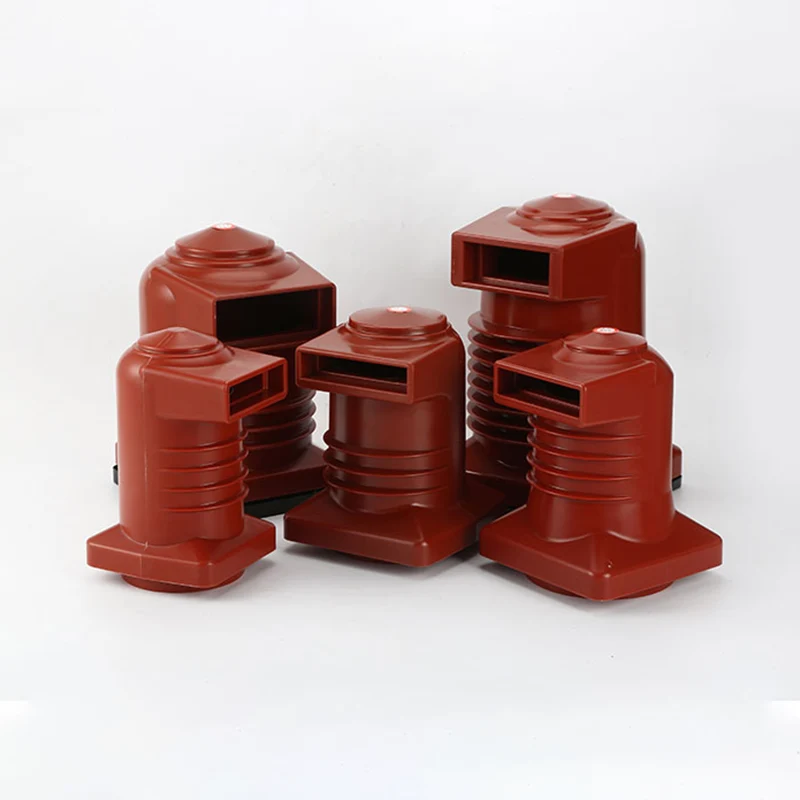

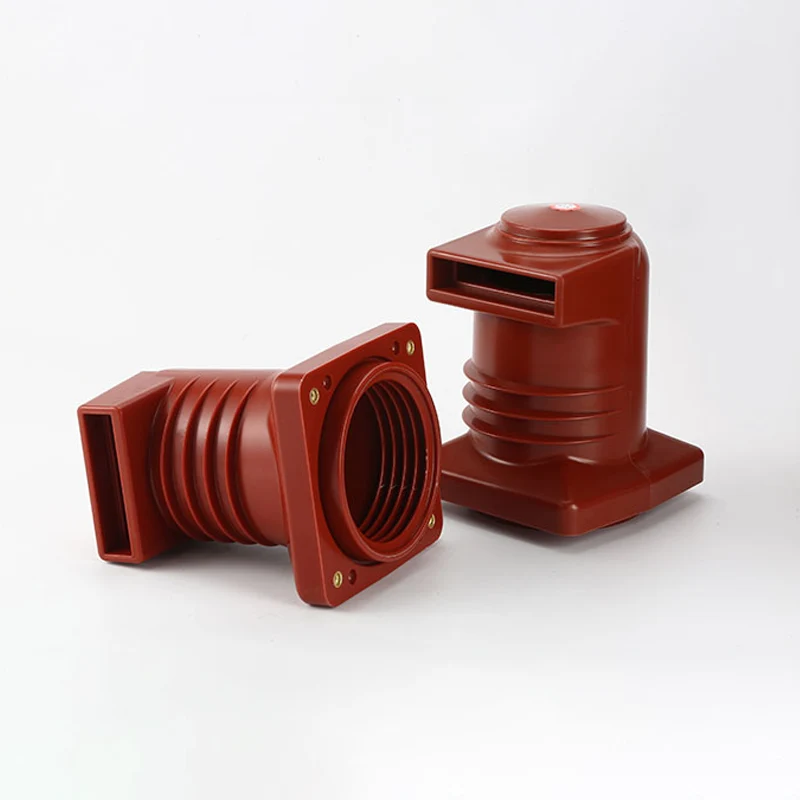

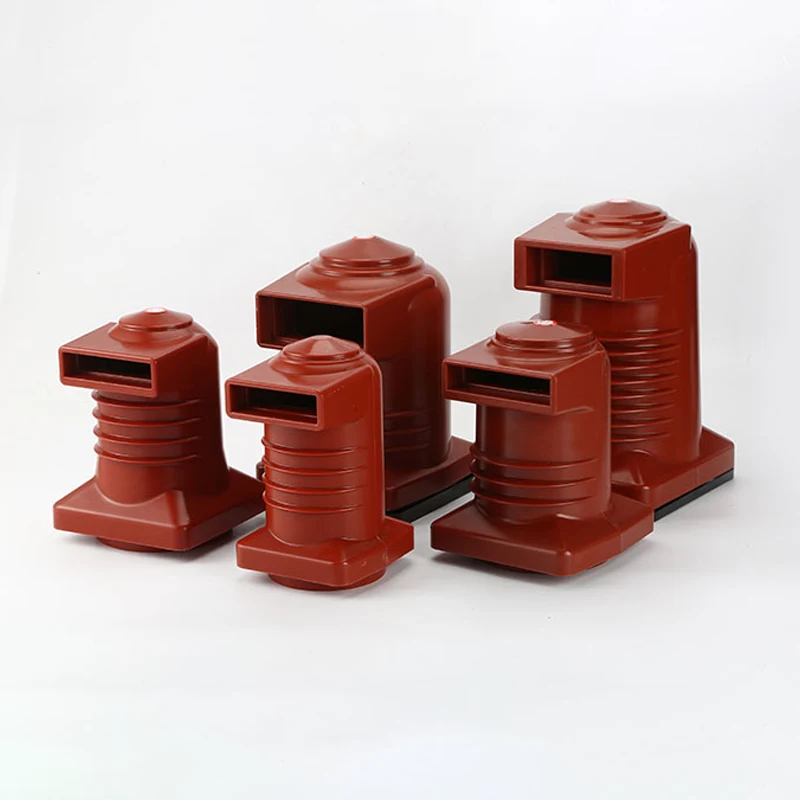

As one of professional manufacturer, Sehnaider Electric would like to provide you high quality CH3 Series Contact Box. And we will offer you the best after-sale service and timely delivery. The contact box is formed by epoxy resin with APG(casting) pressure gelating technies, it is used for insulation isolation and connection transition of various handcart type switch cabinet.
1. The product adopts epoxy resin material
2. It gains high level of insulation, intensity and stability.
3. It provides different specifications based on the size of electric current for the user's choice
4. The contact box is formed by epoxy with APG Technology
Normal Working Environment
1. Altitude: ≤1000m
2. Ambient temperature at -30ºC to +40ºC, the daily average temperature should not more than 30ºC.
3. The daily average of relative humidity is less than 95%, the average monthly is less than 90%.
4. Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products.
5. Working environment should not be regular vibration or serious bumps.
| Model Name: | CH3-12/190 Contact Bok |
| Brand: | Uyond |
| Type: | Contact Box |
| Application: | High Voltage/Switchgear |
| Color | brown,red |
| Product Certification: | CE and ISO 9001:2000 |
| Rated voltage: | 12KV |
| Rated Current: | $1250-1600A |
| MOQ: | 10pcs |
| Packing: |
1.Each one is wrapped with plastic fim 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron bets exdemally |
| Loading port: | Shanghai Port/Ningbo Port |
| Payment terms: | L/C,T/T,Western Union |
| Delivery time: | within 15 days,depends on order quannity |
| Additional: |
1.OEM are welcome 2. Hign qually & limely delvery 3. Reasonable price 4. In a variety of designs and Specification |
